ZJ-HM50-LC Backpack Laser Cleaning Machine

cleaning machine

一. Company Profile

DongGuan Jez Technology Co.,Ltd is a new high-tech company which provide advanced laser technology support and integrated solution for surface treatment industry and metal fabrication for customers .


Before foundation , JezTech already worked with lots of famous component suppliers and industry technical experts , with years of continuously improvement on technical and machine quality , now JezTech is accepted by more and more customers global .



Main products and business of JezTech including:

Laser cleaning machine ,laser marking machine ,laser welding machine ,laser cutting machine ,  weld bead cleaning machine , full set system solution and accessories .

Newest laser technology melt with traditional processing ways , JezTech is not only aiming to cover the shortage of conventional process ,but greatly improving precision and working efficiency on surface treatment and metal fabrication industries ,then meet highly requirements about environmental safety , new products process and new industry development .



Basing on profession,providing more suitable solution !

Welcome to choosing Jeztech .



二.Product Introduction

Laser cleaning is the latest and most cutting-edge surface precision cleaning technology on the market.

The high energy efficiency and instant high temperature of the laser are used to produce an explosion-like effect on the surface of the product, and the impurities and materials that need to be removed from the surface are stripped and evaporated to obtain a satisfactory high-quality surface treatment effect.

Compared with traditional industrial cleaning methods, laser cleaning has the characteristics of environmental protection, high efficiency, small footprint, high flexibility, and easy operation, and is accepted by more and more customers.

Features

  1. Smallest and lightest weight only 7KG ;
  2. Non-contact cleaning,no internal stressand deformation;
  3. Lightweight design, high integration, safe operation;
  4. No need chemical detergent, no consumable;

5.Universal single phase 110V 220V power supply ,plug and use ;

  1. 2D newest mini air cooling cleaning head with safety button;
  2. Built-in air cooling system with 6 different laser cleaning models;
  3. Integrated design of machine handle and three-color work light.







Applicable materials and industries

1.Rust removing from metal parts ;

2.Weld bead cleaning for stainless steel ,copper ,Aluminium,carbon steel ;

3.Cultural Relics,Sculptures restoration ;

4.Graffiti ,paint removing from heritage building and Stone statue;

5.Wooden antique furniture clean after smoke damage.

Specifications(For reference only)

Laser Power50W
Laser wavelength1060-1070nm
Pulse width(ns)100
Pulse repetition frequency(KHZ)45-170
Max Single Pulse Energy(MJ)1.1
Working Humidity<70%
Power Supply

1PH / 110V / 220V±10% / 50-60HZ



Power Consumption300W
Cooling WayAir cooling
Laser TypePulse Fiber laser
Length of fiber cable(m)3
Working Humidity<70%
Working Temperature5-40°C
Lase Beam WidthStandard 100mm
Laser beam types6 different types
Cleaning head safety buttonYes
Weight of cleaning head0.7 kg
Machine Size230 x 165 x 75 mm
Net Weight7KG
Emergency ButtonYes
Work indicatorThree colors display Lamp
Operation interface languageEnglish(Option)

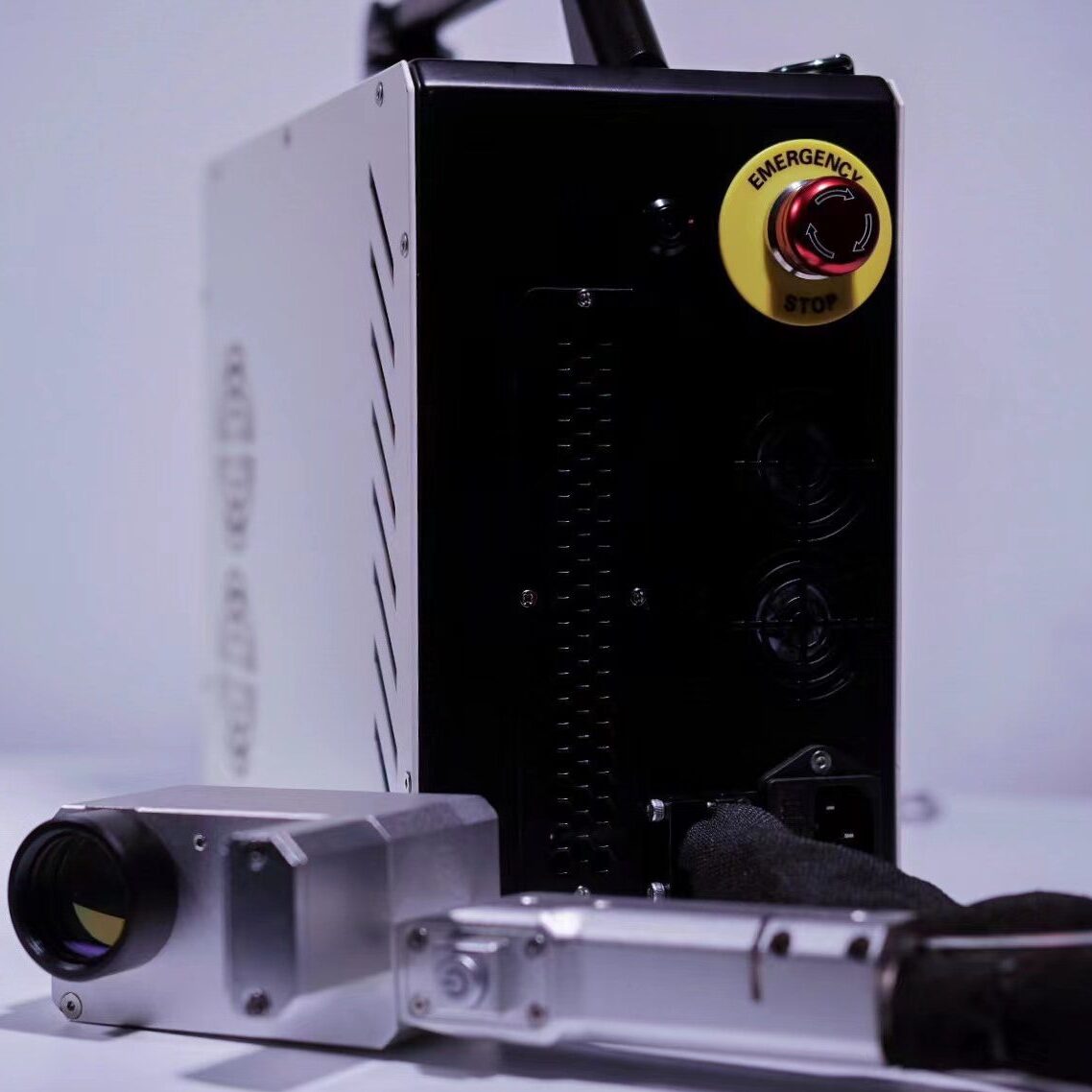

六.Machine Pictures



2418 word1 2418 word12418 word1



(6 different laser beam shapes)





七.Standard free parts with machine

Laser Protecting goggle : 1 Piece

Protective lens: 3 Pieces

Power Cable: 1 Piece

Four Pin Connector: 1 Piece

Cleaning Head: 1 Piece

Focus Lens: 1 Piece

Professional lens cleaning paper: 1 Bag



  1. Payment Term ,Guarantee and Delivery

50% advanced payment ,50% before machine left factory

Guarantee: 2 Years for laser source ,1 Year for other parts

Delivery: 3-7 working days after advanced payment
